Particle Impact Noise Detection (PIND)

Particle Impact Noise Detection (PIND or PIN-D) is designed to identify the presence of loose particles inside a device cavity that can impact the functionality, reliability or even personal safety. The PIND test provides a nondestructive means of identifying those devices containing unattached particles with sufficient mass that, upon impact with the device case or enclosure, excite the transducer and produce a signal for detection.

Loose particle contamination is a major cause of device failure. Conductive contamination within an internal cavity may bridge active metallization causing catastrophic EOS events, while non-conductive particle contamination may cause mechanical damage to internal components resulting in an inoperable condition.

PIND Particle Impact Noise detection testing

Particle Impact Noise Detection (PIND) testing is the accepted method to detect particle contamination within the internal cavity of a device, especially in cases where X-Ray inspection is limited or not possible, such as rad-hardened devices. The PIND testing method is considered to be a non-destructive test and is widely used in total lot screening applications on live or ‘flight’ components.

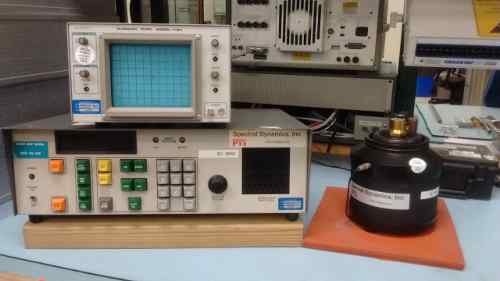

The equipment required for PIND testing includes a threshold detector, a variable shaker and driver assembly to provide a sinusoidal motion to the device under test (DUT testing), a transducer and a shock mechanism capable of imparting shock pulses to the DUT.

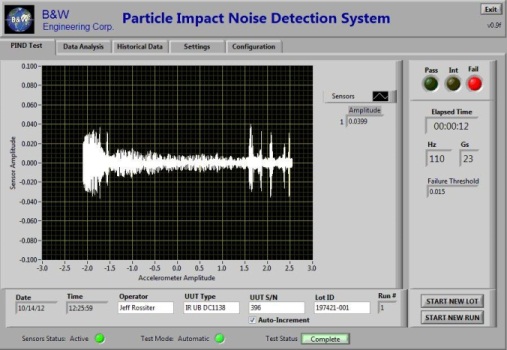

Test samples are mounted to a shaker assembly with acoustic couplant gel or a double-sided adhesive tape. The system then performs a prescribed series of shocks and vibrations. The shock pulse is designed to dislodge any loosely attached particles, after which the vibration phase will cause any loose particles to impact the internal surfaces of the device. This impact is detected by transducers mounted on the shaker assembly, which are required to be capable of detecting a mass equivalent to that of a 1mil gold wire bond or smaller. These transducers output a sinusoidal wave to an oscilloscope, which allows for failure detection audibly, visually, and/or by crossing a system monitored threshold.

  • Test Specifications / Standards
  • MIL-STD-750 Method 2052
  • MIL-STD-883 Method 2020 (Conditions A & B)

Suitability and Accreditation

Oneida Research Services (ORS) holds Commercial Laboratory Suitability Status for MIL-STD-750 Method 2052, MIL-STD-883, Method 2020 PIND testing, granted through the Defense Logistics Agency (DLA).

Devices tested to Methods 2052 and 2020 as part of lot screening are not allowed to be retested once a failure has been identified. Due to the restrictions against retesting failed components, ORS goes above and beyond the Mil-Std requirements and fully records all tests.  By recording each run, we are able to review and analyze failures while complying with the Mil-Std requirements prohibiting additional test runs.

  • ORS provides testing to Mil-Std-750, Mil-Std-883 and MIL-STD-202, as well as any customer request between 27Hz and 250Hz at 10 – 20 g’s acceleration.
  • Lot acceptance testing strictly adheres to a sampling plan listed in each of the Mil-Stds.
  • Test Condition A parameters specifies a 20 g peak vibration at a predetermined internal cavity height specific frequency of 40 to 150Hz.  (Up to 250Hz by customer request.)
  • Test Condition B parameters specifies a 10 g peak vibration at a minimum of 60Hz.
  • Two unique fixture head sizes are available to handle larger devices.
  • Failures are fully recorded using video. (Videos provided upon request.)
  • Particle Retrieval is available for failed devices to gather any loose particle and perform elemental identification as an additional service.

Get more information about PIND testing.
